Inland XB 271

 Post Reply Post Reply Page  <123
Author
Message
m1a1fan View Drop Down
Hard Corps
Hard Corps
Avatar
Got Para?

Joined: Jan 01 2016
Location: Virginia
Status: Offline
Points: 1230
Post Options Post Options   Thanks (0) Thanks(0)   Quote m1a1fan Quote  Post ReplyReply Direct Link To This Post Posted: Apr 09 2018 at 8:58pm
Yup, the wagon wheel found on an M1A1 butt plate. Can you check and see if correct? Think there is more information. If so, we should start a new thread so the blanks can be filled in.
Back to Top
tenOCEE View Drop Down
Grunt
Grunt
Avatar
Knows rear sights!

Joined: Jan 01 2016
Location: East Tenn
Status: Offline
Points: 204
Post Options Post Options   Thanks (0) Thanks(0)   Quote tenOCEE Quote  Post ReplyReply Direct Link To This Post Posted: Apr 09 2018 at 9:35pm
I can't compare it one today. Could take closer pics of the wheel on the housing if someone else wants to compare. My camera isn't the best.
Back to Top
New2brass View Drop Down
Hard Corps
Hard Corps
Avatar
Dan Pinto, Moderator +, Photo Editor+

Joined: Nov 29 2015
Location: CT
Status: Offline
Points: 1616
Post Options Post Options   Thanks (0) Thanks(0)   Quote New2brass Quote  Post ReplyReply Direct Link To This Post Posted: Apr 09 2018 at 9:45pm

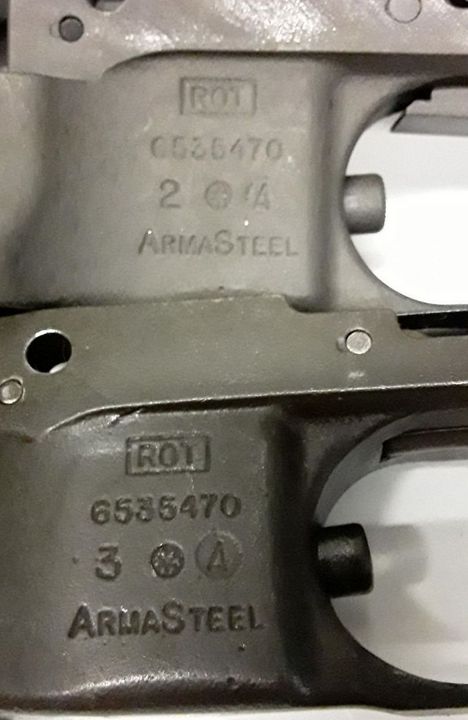

SMI (Saginaw Malleable Iron) was the supplier of M1A1 buttplate castings.
Their symbol looks like a wagon wheel.
8 spokes instead of 6, but 6 spoke wagon wheel seems consistent in their castings


The wagon wheel is not an indication of Armasteel, it is the foundry symbol of SGMI. SGMI had different formulas and Armasteel was one of them.

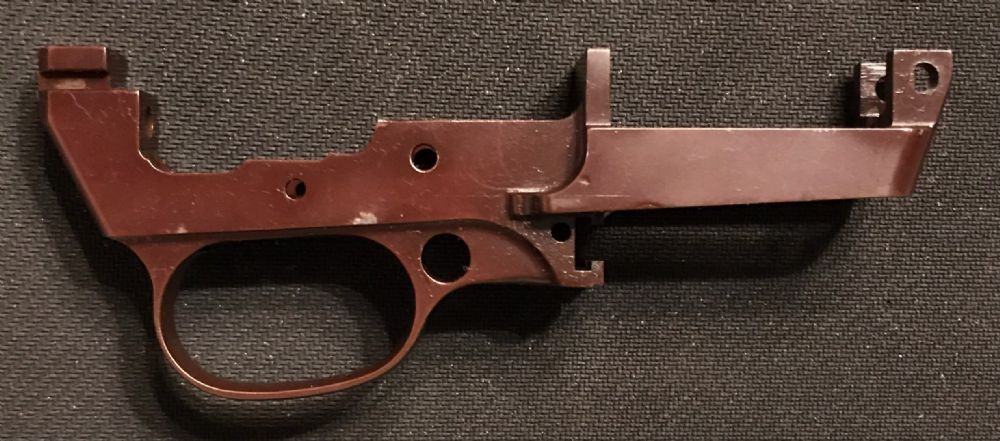

Red BAR trigger housing


Notice the 9 instead of the 3 in other picture. Hmm, sound familiar?
Back to Top
m1a1fan View Drop Down
Hard Corps
Hard Corps
Avatar
Got Para?

Joined: Jan 01 2016
Location: Virginia
Status: Offline
Points: 1230
Post Options Post Options   Thanks (0) Thanks(0)   Quote m1a1fan Quote  Post ReplyReply Direct Link To This Post Posted: Apr 10 2018 at 8:58am
A wagon wheel, B-197491 and then a number. Great find! Fonts looks similar to those on a butt plate
Back to Top
arthur View Drop Down
Recruit
Recruit
Avatar

Joined: Feb 18 2016
Location: dayton,ohio
Status: Offline
Points: 31
Post Options Post Options   Thanks (0) Thanks(0)   Quote arthur Quote  Post ReplyReply Direct Link To This Post Posted: Apr 10 2018 at 1:02pm
m1a1fan, is there a number on the bottom of the gas cylinder?
Back to Top
m1a1fan View Drop Down
Hard Corps
Hard Corps
Avatar
Got Para?

Joined: Jan 01 2016
Location: Virginia
Status: Offline
Points: 1230
Post Options Post Options   Thanks (0) Thanks(0)   Quote m1a1fan Quote  Post ReplyReply Direct Link To This Post Posted: Apr 10 2018 at 7:47pm
@navinator - thanks for the link

@arthur - I have seen the gas cylinder and barrel flat marks on #18 but this one doesn’t have any of them. No markings on the gas cylinder. No markings on barrel flat. Piston nut looks like a type 1. It is unstaked. Piston has four circular marks on it but is unmarked.
Back to Top
